In this part we are going to look at the L3VNI config to get the hosts in the two vlans talking to each other.
Lets remind ourselves of the topology:
All of the configuration below is for the Leaves in the topology.
Vlan Configuration
Firstly, we need to configure a L3VNI vlan for the routing, this configuration is for the leaves:
vlan 999
vn-segment 100999
VRF Configuration
We also need a tenant VRF to be configured which will house the overlay routing:
vrf context OVERLAY-TENANT1
vni 100999
rd auto
address-family ipv4 unicast
route-target both auto
route-target both auto evpn
This configuration also brings in the EVPN information too.
SVI and NVE Configuration
The vlan needs an SVI and also needs to be added into the NVE logical interface:
interface Vlan999
no shutdown
vrf member OVERLAY-TENANT1
ip forward
interface nve1
member vni 100999 associate-vrf
You also need to add the SVIs with the anycast gateways to the VRF too:
interface Vlan10
vrf member OVERLAY-TENANT1
ip address 10.1.1.254/24
fabric forwarding mode anycast-gateway
interface Vlan20
vrf member OVERLAY-TENANT1
ip address 10.2.1.254/24
fabric forwarding mode anycast-gateway
Making sure to add the Layer 3 information back to them after applying the VRF.
BGP Additional Configuration
We also need to add some additional BGP configuration to the leaves:
router bgp 64500
vrf OVERLAY-TENANT1
log-neighbor-changes
address-family ipv4 unicast
network 10.1.1.0/24
network 10.2.1.0/24
Making sure that if you have more subnets to add them with the network command. You could also do some redistribution if you prefer, as long as the routes are advertised into BGP.
Verification
At this point, we should be able to verify the config is working:

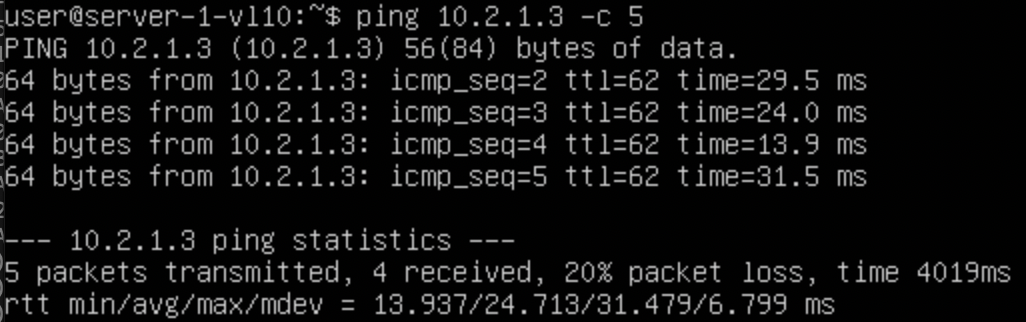

As you can see from the above, the ping from a server in vlan 10 to a server in vlan 20 works! We lost the first ping to ARP, but after that, all is working.
Now we have internal communications within the fabric between VNIs. Next we will look at layering on another tenant vrf to show a multi tenant design.
